Brazing is a versatile metal-joining process that creates a strong bond between two or more metal pieces using a filler metal with a lower melting point than the base materials. Unlike welding, brazing doesn't melt the base metals, preserving their structural integrity. This characteristic makes brazing ideal for joining dissimilar metals, creating complex assemblies, and achieving precise, clean joints. This comprehensive guide delves into the intricacies of brazing, covering everything from the fundamentals to advanced techniques, enabling you to master this essential skill.
Understanding the Basics of Brazing
Brazing relies on capillary action, where the molten filler metal is drawn into the narrow gap between the base materials. This action ensures a uniform and strong bond. Several key factors contribute to successful brazing:
Base Metals: Brazing can join a wide range of metals, including steel, stainless steel, copper, brass, aluminum, and nickel alloys. Proper selection of base metals is crucial for compatibility with the filler metal and achieving the desired joint strength.
Filler Metals: Filler metals are chosen based on their melting point, flow characteristics, and compatibility with the base metals. Common filler metals include silver alloys, copper alloys, aluminum-silicon alloys, and nickel alloys. The filler metal's melting point should be lower than the base metals but high enough to withstand the intended service temperature.
Flux: Flux plays a vital role in brazing by removing oxides and other contaminants from the base metal surfaces. This ensures proper wetting and flow of the filler metal, resulting in a strong and reliable joint. Fluxes are available in various forms, including pastes, powders, and liquids.
Heating Methods: Various heat sources can be used for brazing, including torches, furnaces, induction heaters, and resistance welders. The choice of heating method depends on the size and complexity of the assembly, the type of base metals and filler metal, and the desired production rate.
Step-by-Step Brazing Process
Joint Design and Preparation: Proper joint design is crucial for successful brazing. The joint should provide sufficient clearance for capillary action, typically between 0.001 and 0.005 inches. Clean the base metal surfaces thoroughly to remove dirt, grease, and oxides. This can be achieved through mechanical cleaning (grinding, sanding, wire brushing) or chemical cleaning (degreasing, pickling).
Flux Application: Apply flux to the cleaned base metal surfaces and the filler metal. The flux prevents oxidation during heating and promotes the flow of the filler metal into the joint.
Assembly and Fixture: Assemble the parts to be brazed, ensuring proper alignment and joint clearance. Use fixtures to hold the parts securely in place during the brazing process.
Heating: Apply heat to the base metals, focusing on heating the area around the joint. The heat should be distributed evenly to avoid localized overheating. Monitor the temperature carefully to ensure that the base metals reach the brazing temperature but do not melt.
Filler Metal Application: Once the base metals reach the brazing temperature, introduce the filler metal to the joint. The filler metal will melt and flow into the joint by capillary action. Avoid overheating the filler metal, as this can lead to poor joint quality.
Cooling and Cleaning: Allow the assembly to cool slowly to room temperature. Once cooled, remove any residual flux and clean the joint.
Different Brazing Methods
Several brazing methods cater to specific applications:
Torch Brazing: This method uses a handheld torch to heat the base metals. It's suitable for small to medium-sized parts and offers good control over the heating process.

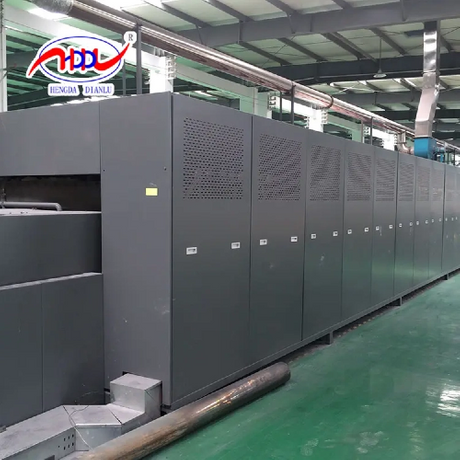

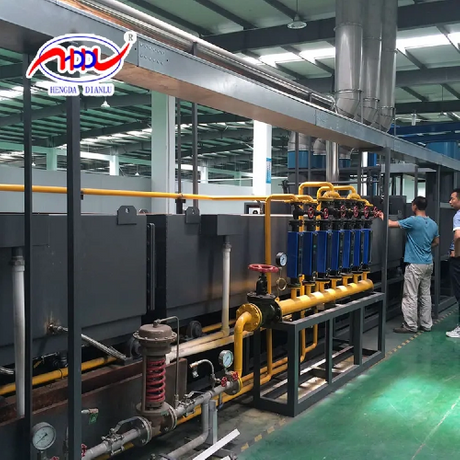

Furnace Brazing:Furnace brazing involves placing the assembled parts in a controlled-atmosphere furnace. This method is ideal for large production runs and complex assemblies, ensuring uniform heating and consistent joint quality.
Induction Brazing: Induction brazing uses high-frequency electromagnetic fields to heat the base metals. It's a fast and efficient method, particularly suitable for localized heating and automated processes.
Resistance Brazing: Resistance brazing utilizes the heat generated by the electrical resistance of the base metals when a current is passed through them. This method is often used for joining small parts and offers precise control over the heating process.
Advantages of Brazing
Strong and Durable Joints: Brazing produces strong and durable joints capable of withstanding significant stress and vibration.
Joining Dissimilar Metals: Brazing can join dissimilar metals that are difficult or impossible to weld.
Complex Assemblies: Brazing is well-suited for joining complex assemblies with multiple joints.
Precise and Clean Joints: Brazing produces precise and clean joints with minimal distortion, requiring little or no post-braze machining.
Cost-Effective: Brazing is a cost-effective joining method, particularly for high-volume production.
Troubleshooting Common Brazing Problems
Poor Wetting: This can be caused by insufficient cleaning, improper flux application, or incorrect filler metal selection.
Void Formation: Voids can result from trapped gases, inadequate joint clearance, or excessive heating.
Brittle Joints: Brittle joints can be caused by incorrect filler metal selection or improper cooling rates.
Distortion: Distortion can occur due to uneven heating or improper fixturing.
By understanding the principles of brazing and following the proper procedures, you can achieve high-quality, reliable joints for a wide range of applications. For more information on brazing furnaces and other brazing equipment, visit www.hengdabrazingfurnace.com. We offer a wide range of high-quality brazing solutions to meet your specific needs.
